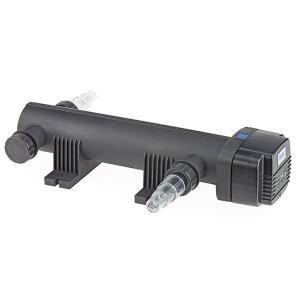

OASE Vitronic UV Clarifiers

Vitronic is a simple yet flexible UV clarifier designed to interoperate with all filter systems, although best suited for OASE BioSmart filters. It helps in the reduction of algae and phytoplankton, as well as limiting the growth of harmful pathogens.

The compact design allows for easy installation. The quick-lock ballast head makes changing the UV bulb a breeze. UV operation can be safely monitored through the included large aperture viewer.

In conjunction with the BioSmart range of products, Vitronic becomes a modular part of the filter system, with no extra plumbing needed. The clarifier simply hooks onto the filter box with all accessories included.

Effective Pond Size: up to 5000 gal. (without fish)
UV Power: 18W
Recommended Pump Capacity: 1600 GPH (min) to 3000 GPH (max)
Max. Operating Pressure: 7.5 psi (17 ft)
Intake Connection: 1 1/2 in. threaded, male
Outlet Connection: 1 1/2 in. threaded, male
Tubing Connector: 1 in., 1 1/4 in., 1 1/2 in. (x3)
Recommended Filter: BioSmart 5000
Power Cable Length: 16 ft.
Power Consumption: 24W
Power Requirement: 110-120V / 60Hz
Regulatory Listing: MET (Canada, US)
Dimensions (LxWxH): 21 x 7 x 5 in.
Limited Warranty: 1 Year
